Alive System Operation

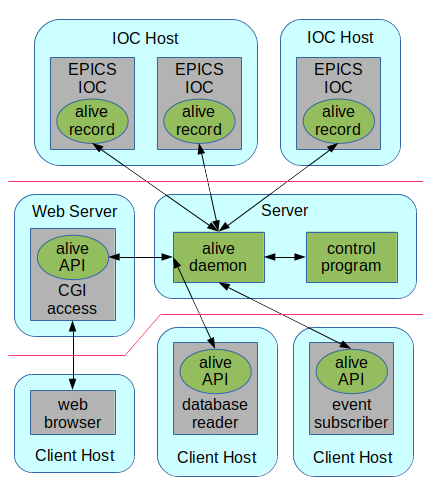

The Alive system is composed of several components, working with each other over a network. In the network diagram, there are three layers. The top layer contains the IOCs, which can be running on dedicated hardware like VME or as processes (single or multiple) on Linux hosts. The middle layer consists of alive services: the alive database server and the CGI clients that reside at the web server. The bottom layer consists of the user clients, which can be web clients or simple command line clients.

As EPICS IOCs compose a distributed control system consisting of peer nodes with no leader, monitoring the IOCs involves communication with each one. Each IOC sends hearbeat messages to a central alive server, and allows queries about's its boot configuration; this is done with an alive record on each IOC.

The central alive server communicates accepts heartbeats from any IOC, will query IOCs for their boot parameters, and stores the information in an in-memory database. On this same server as the daemon, a program can be run to locally control or monitor the daemon's operations. The server also provides a networked API for accessing current and historical values for each IOC. The CGI clients on the web server use this interface to create web pages.

Client programs run on other hosts, in two different ways, both utilizing the alive API for communication. The first way is to read all or part of the current alive database, while the second is to subscribe for event notifications when there is a change in an IOC's status (this second way is not fully operational right now). The alive system comes with a database client that allows full access to the data from the command line.

The alive record is meant to be generic in nature, and the operating system support for the Alive record is meant to match those that EPICS supports. The database server code, which resides outside of EPICS, specifically targets Linux and its design is tailored for the needs of our group.

EPICS Record

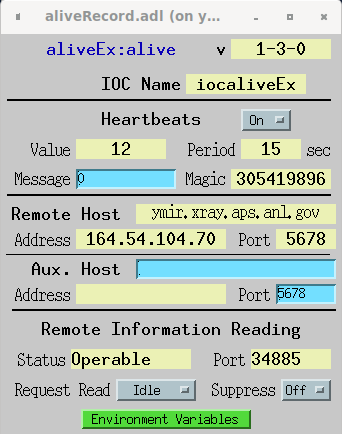

This record is distributed as an optional module for EPICS, and can be found online at github. It is part of the synApps distribution developed at the Advanced Photon Source. To the right is a screenshot of an active alive record's accessible information (as seen through a screen for the EPICS graphical user interface medm).

The alive module has no dependencies on other EPICS modules or external libraries. Complete documentation is provided with the source, such as for configuration and record use, and network protocol implementation for creating your own heartbeat monitoring program (on the central server).

The record's main job is to send UDP heartbeat packets to the remote server at a fixed interval (with a default of 15 seconds), to let it know that the IOC is still running. It also listens on a TCP port that allows the remote server to retrieve all the environment variable data along with operating system dependent data.

The heartbeat packets contain the IOC's name, the boot time (or incarnation), the current time, the IP address of the IOC, the UDP port used to send the packets, a user-defined 64-bit integer message, and other information. The combination of IP address, port, and incarnation provide a unique identifier for any particular instance of an IOC, allowing multiple instances running with the same IOC name to be identified (a conflict). As these are UDP packets, the record does not need to care whether they make it to the remote server or not, and will send them regardless of whether the network or server is up or down.

The alive record will only respond to the remote server on the TCP port, to reduce chances of interference due to probing from other computers. When the remote server connects, the alive record will not read anything but rather write all of its information and then close the port, not allowing the remote host to keep the port open. The data sent is the names and values of the environment variables that are specified in the alive record's fields, as well as the operating system dependent infomation, which can be about the user account and machine used to start the IOC for a server or the boot parameters for an embedded system.

The 64-bit integer message value that is sent with the hearbeats is intended to have a generic use, although it is meant for conveying additional status values. The user defines the meaning of it, and how to respond to its values. In our case, we have started using bits of the value as error flags as caught by other records.

Database Daemon

The alive database is provided by the alive daemon, alived, which runs on an independent server.

The daemon accepts the heartbeats on a UDP port from the alive records of any IOC. The daemon drops invalid packets, and the correct ones are checked against the internal database. If valid heartbeat's IOC has never been seen before, it is added, otherwise the existing IOC is updated. If the IOC has a new instance (such as from rebooting or moving to a new host), the IOC's alive record is then contacted on its advertised TCP port, and its environment variables and operating system dependent information are retrieved and updated in the database.

The deamon determines the IOC's running state from its heartbeats. If an IOC has not sent a heartbeat within a certain number of periods (with the period interval sent in the most recent valid heartbeat), the IOC is considered failed; otherwise it is considered to be up and running. If there are multiple instances of an IOC considered up that have heartbeats which interleave in time, then the IOC is considered to be in conflict (such as starting the same IOC twice); care has to be taken as a rebooted IOC will have two instances considered up (as the previous one has not timed out), but this normal situation can be identified as the heartbeats of the earlier instance strictly come before those of the later instance.

Events for an IOC are also generated by the heartbeats. These are recorded for future reference with event time, IP address, and message value. They are:

Control Program

The daemon runs in the background of the server, and has a special control program. The program communicates with the daemon through an IPC socket, so the program has to be run locally on the daemon's host.

The control program can stop the daemon, directly query the database, take database snapshots, and present debugging information. Snapshots are text data files, and can be taken periodically in order to create a historical record that can be analyzed.

Client API

The IOC information can be retrieved remotely for clients using the alive API library. This library allows the client to retrieve information of several types:

Event notification will also handled by the alive API, but it works differently. Instead of requesting the data, the client asks for a subscription along with a callback subroutine. Whenever an event occurs, the daemon sends the event and operational information to the subscribers. This system is not fully operational at this point.
